VCRO automatic winder inherits the advantages of SMARO-NEW series winder, adopts bran-new profile design - featured by beautiful and dignified, adopts the bran-new smart anti-pattering device, new type of tension control system and new type of balloon control mechanism to ensure perfect package building, more even winding tension, high machine operation stability and reliability to meet customer requirement better.

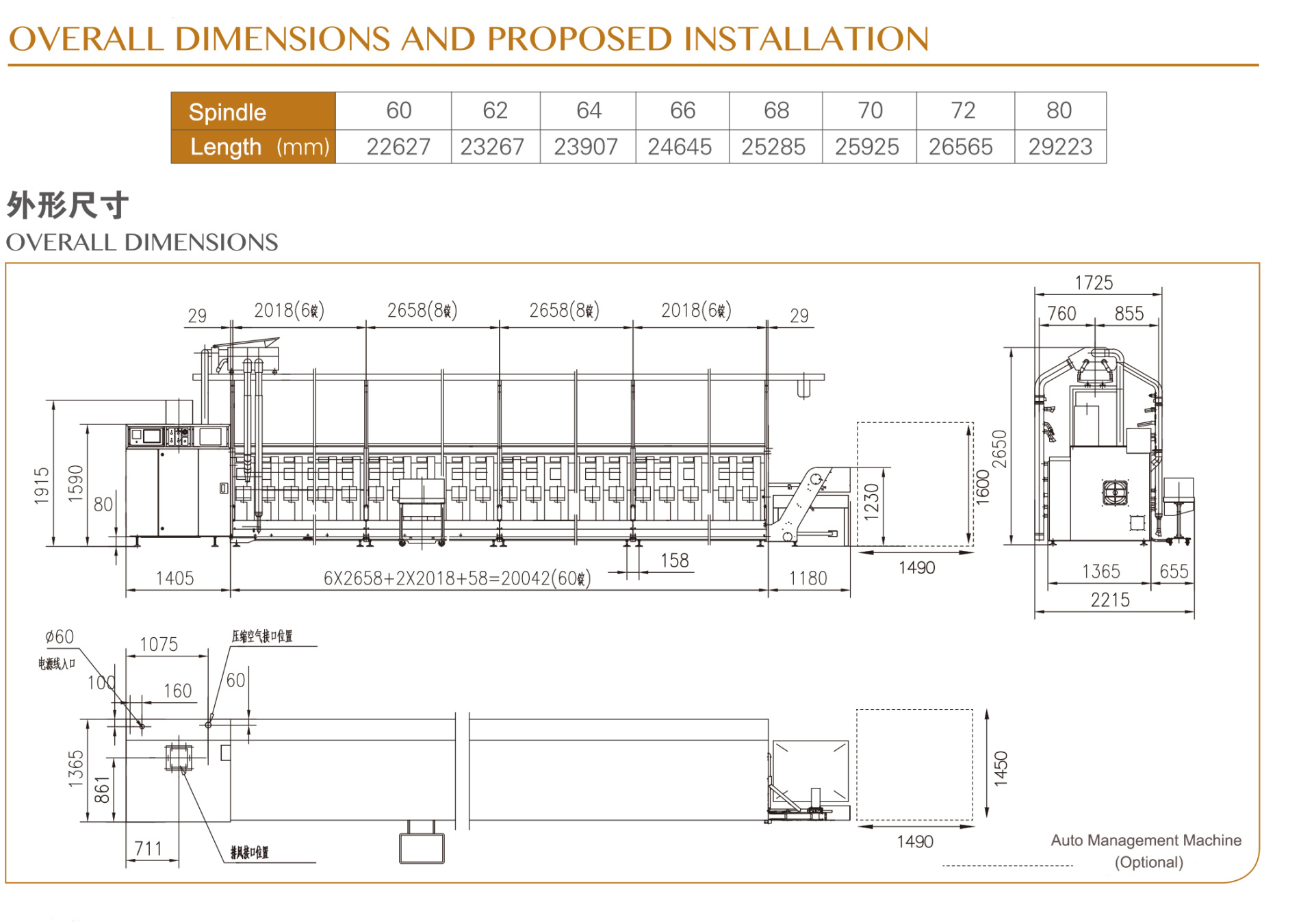

Main Technical Specification:TYPE Single-spindles, single-sided arrangement, left or right hand APLICATION Nm3.5 to the highest count cotton, wool, synthetic yarn and blended single yarn. WINDING SPEED 400-2200m/min,step-less speed regulation NUMBER OF WINDING SPINDLES 6 to 80every two spacing increment. SPINDLE DISTANCE 320mm APLICABLE BOBBIN TAPER 4°20', 5°57' FEEDING BOBBIN Diameter=32-65mm, length=180-300mm. JOINT TYPE Airsplicer, aquasplicer MAGAZINE TYPE 9 holes or 6 holes CLEARER TYPE The latest USTER/ LOEPFE electronic yarn clearer DRUM DC motor coaxial transmission, step-less speed regulation CIRCLES ON DRUM 2 or 2.5 ANTI-PATTERING Motor speed variation controlled in whole process JOINTS CIRCLE Electrical logic control, intelligent cycle TENSION CONTROL Electromagnetic pressure. POWER INSTALLED 33.57kW (actual consumption 11-15kw) OVERALL DIMENSION (60 SPINDLES) 22627 X1365X2650mm
